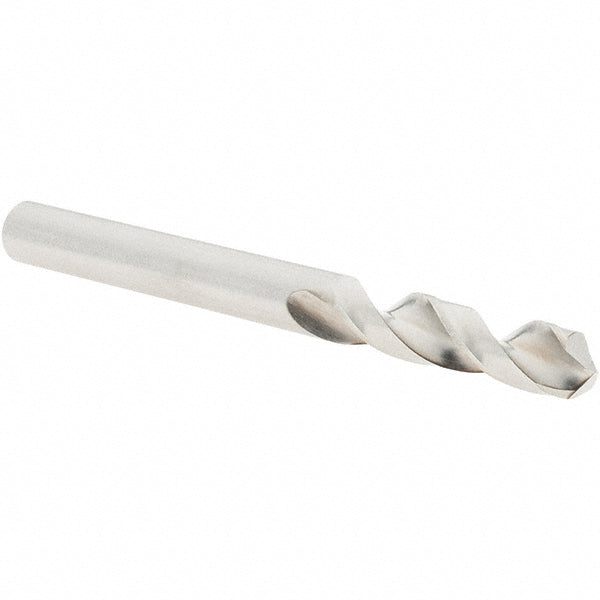

17/64" Cobalt Stub Drill Bit, Straw, 118° point - Guhring 9055240067500
MFR# 9055240067500Series 5524
$7.83List $10.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingStraw
Description
The Guhring 9055240067500 is a 17/64" Cobalt Stub drill bit with a Straw finish, 118° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. Series 5524.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size in17/64
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)31.00
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth0.9400
Number of flutes2
Overall length2.7559
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2656
Shank length1.5354
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
