Guhring

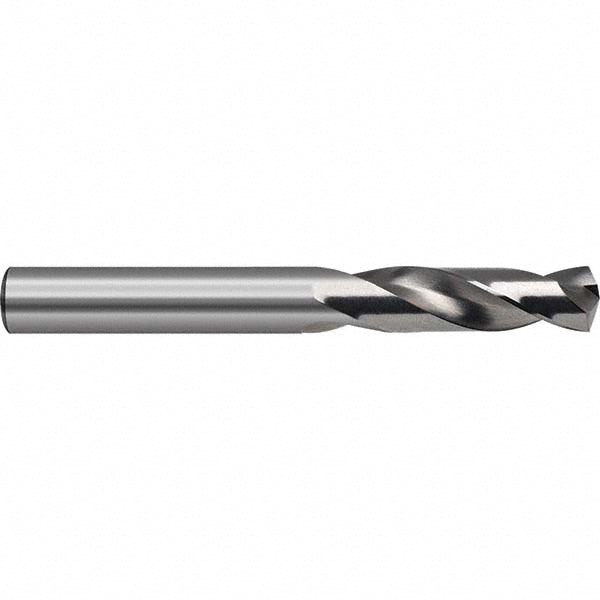

Letter W Cobalt Stub Drill Bit, 118° point - Guhring 9055240098000
MFR# 9055240098000Series 5524
$18.61List $23.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9055240098000 is a Letter W Cobalt Stub drill bit, 118° point. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.3858
Drill bit size letterW
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeSpiral
Material gradeM35
Overall length3.5039
Point typeFour Facet; Split
Shank diameter0.3858
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
Web configurationTapered
