Guhring

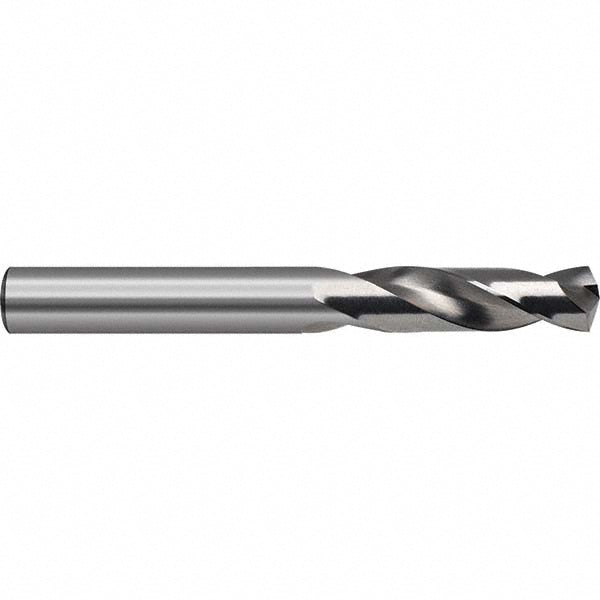

13/32" Cobalt Stub Drill Bit, Straw, 118° point - Guhring 9055240103200
MFR# 9055240103200Series 5524
$19.22List $24.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
CoatingStraw
Description
The Guhring 9055240103200 is a 13/32" Cobalt Stub drill bit with a Straw finish, 118° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. Series 5524.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth1.0830
Number of flutes2
Overall length3.5039
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4063
Shank length1.8110
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
