Guhring

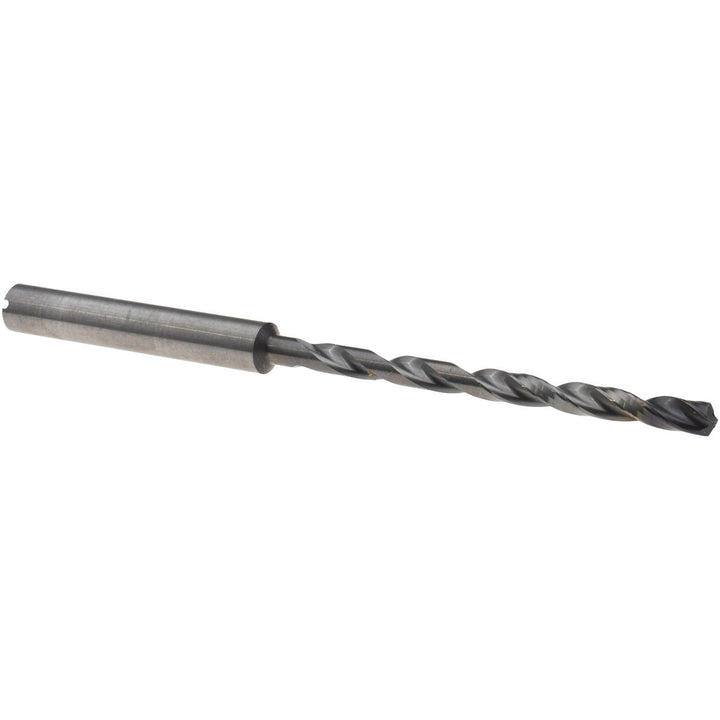

0.1406" Solid Carbide Drill Bit, nano-FIREX - Guhring 9055250035700
MFR# 9055250035700Series 5525
$289.65List $371.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Coatingnano-FIREX
Description
The Guhring 9055250035700 is a 0.1406" Solid Carbide drill bit with a nano-FIREX finish. Series 5525.
Specifications
Coating finishnano-FIREX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit gradeHigh Performance
Drill bit size0.1406
Flute by diameter ratio12xD
Flute length1.9685
Flute typeSpiral
Material gradeDK460UF
Number of flutes2
Overall length (mm)90.00
Point typeStandard
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
