Guhring

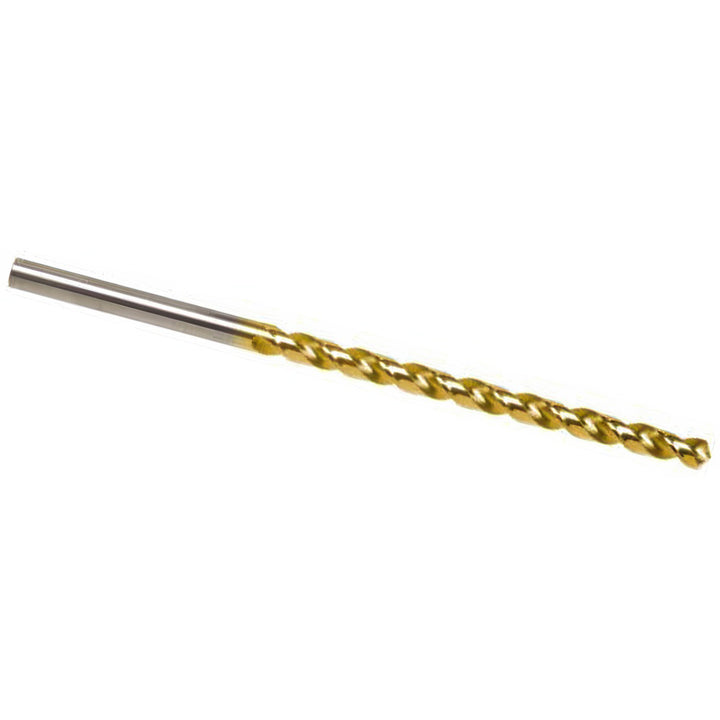

#54 HSS-E Cobalt Drill Bit, TiN, 118° point - Guhring 9055370014000
MFR# 9055370014000Series 5537
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9055370014000 is a #54 HSS-E Cobalt drill bit with a TiN finish, 118° point. Series 5537.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0550
Drill bit size wire#54
Drill point angle degrees118
Flute length (mm)45.00
Flute length x diameter ratio10xD
Flute typeParabolic
Maximum drilling depth1.6890
Overall length (mm)70
Point typeSplit
Shank diameter (mm)1.40
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification numberDIN 340
StandardsDIN 338
Threaded shankNo
Tool materialHSS-E Cobalt
Web thinningWeb-Thinned
