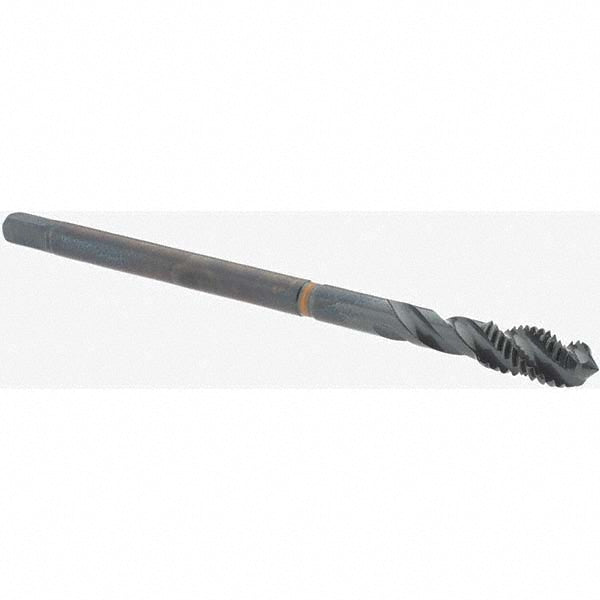

M6 x 1.00 Metric Cobalt Tap, Oxide - Guhring 9057170060000

Guhring

M6 x 1.00 Metric Cobalt Tap, Oxide - Guhring 9057170060000

MFR# 9057170060000Series 5717

$17.58List $22.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingOxide

Description

The Guhring 9057170060000 is a Metric Cobalt tap with a Oxide finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case Hardened Steel; Cast Iron; Ductile Iron; Free Cutting Steel; Heat Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length (mm)11.00
Number of flutes3
Overall length3.1496
OversizeNo
Shank diameter0.1772
Square size (mm)3.40
Tapping depth (mm)5.00
Thread directionRight Hand
Thread length0.4331
Thread limitD5
Thread pitch (mm)1.00
Thread size (mm)M6 x 1.00
Thread standardMetric
