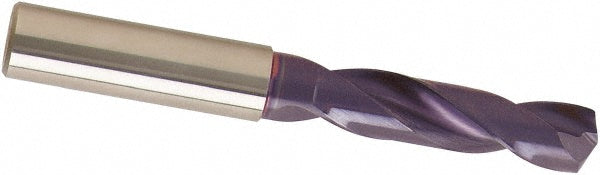

0.1280" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9057410032500

Guhring

0.1280" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9057410032500

MFR# 9057410032500Series 5741

$91.06List $116.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Guhring 9057410032500 is a 0.1280" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for titanium alloy. Series 5741.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1280
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth0.5960
Number of flutes2
Overall length2.4409
Point typeSU
Primary workpiece materialTitanium Alloy
Shank diameter0.2362
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
