Guhring

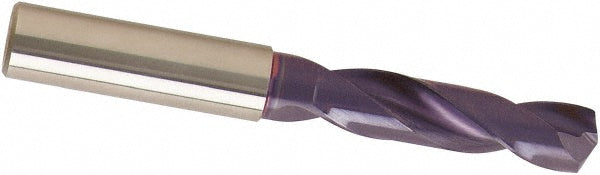

0.3346" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9057410085000
MFR# 9057410085000Series 5741
$161.94List $207.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9057410085000 is a 0.3346" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy. Series 5741.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.3346
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth1.3480
Number of flutes2
Overall length3.5039
Point typeCone Relief
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3937
Shank length1.6535
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
