Guhring

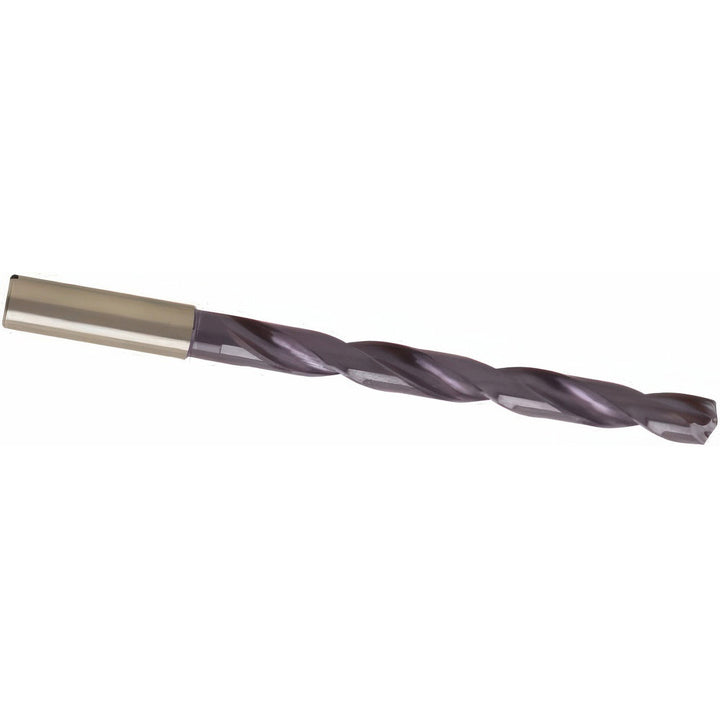

0.2835" Solid Carbide Drill Bit, nano-A, 140° point - Guhring 9057460072000
MFR# 9057460072000Series 5746
$296.95List $380.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Coatingnano-A
Description
The Guhring 9057460072000 is a 0.2835" Solid Carbide drill bit with a nano-A finish, 140° point. Series 5746.
Specifications
Coating finishnano-A
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2835
Drill point angle degrees140
Flute length (mm)76.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationStainless Steel; Nickel Alloy; Titanium Alloy
Material gradeK40
Overall length (mm)116.00mm
Point typeSU
Shank diameter (mm)8.00mm
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web thinningWeb-Thinned
