Guhring

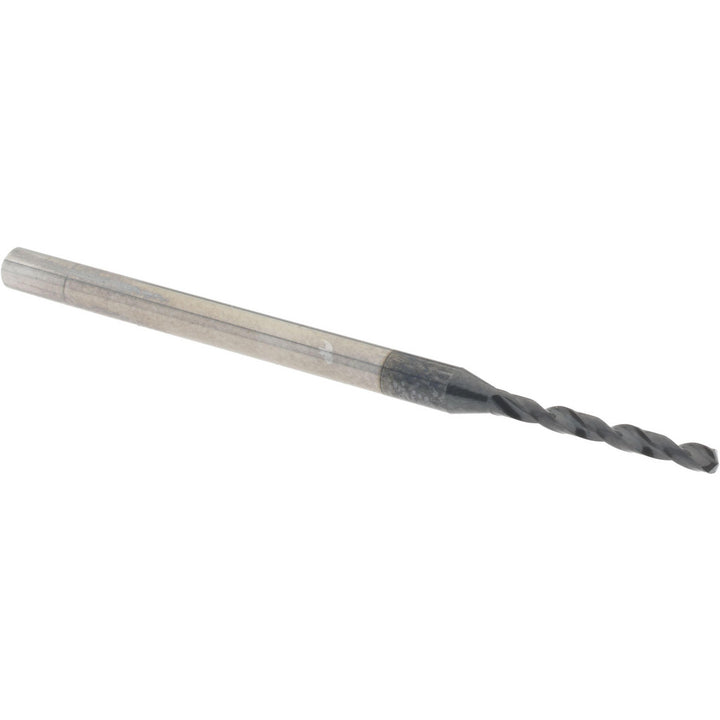

0.0650" Solid Carbide Drill Bit, TiAlN, 140° point - Guhring 9064010016500
MFR# 9064010016500Series 6400; 6401
$115.51List $148.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Guhring 9064010016500 is a 0.0650" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, stainless steel, steel. Series 6400; 6401.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.0650
Drill point angle140
Flute by diameter ratio7xD
Flute length (mm)14.90
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth (mm)12.90
Overall length (mm)52.00
Point typeFaceted
Primary workpiece materialCast Iron; Stainless Steel; Steel
Secondary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
