Guhring
0.0906" Solid Carbide Drill Bit, TiAlN, 140° point - Guhring 9064010023000
MFR# 9064010023000Series 6400; 6401
$120.11List $154.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description

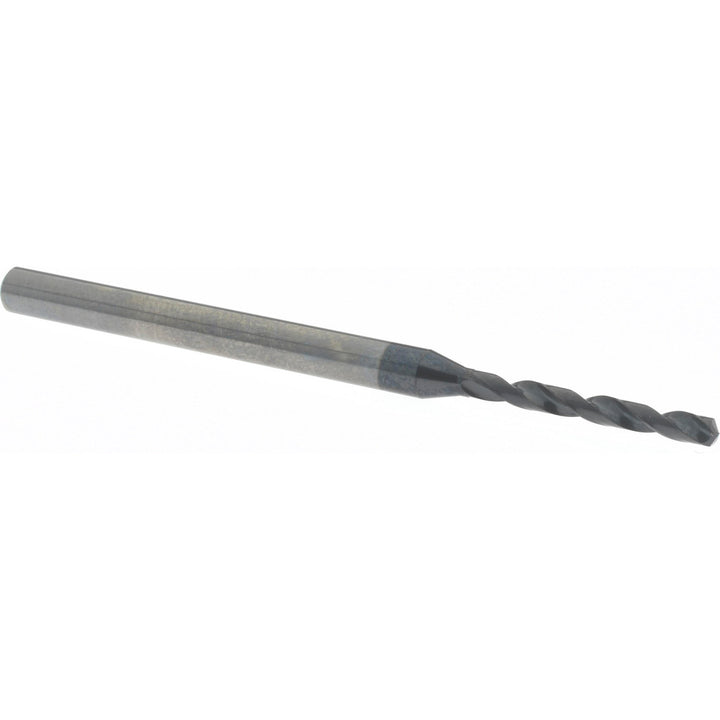

The Guhring 9064010023000 is a 0.0906" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, stainless steel, steel. Series 6400; 6401.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.0906
Drill point angle140
Flute by diameter ratio7xD
Flute length (mm)20.70
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth (mm)17.90
Overall length (mm)63
Point typeFaceted
Primary workpiece materialCast Iron; Stainless Steel; Steel
Secondary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
