Guhring

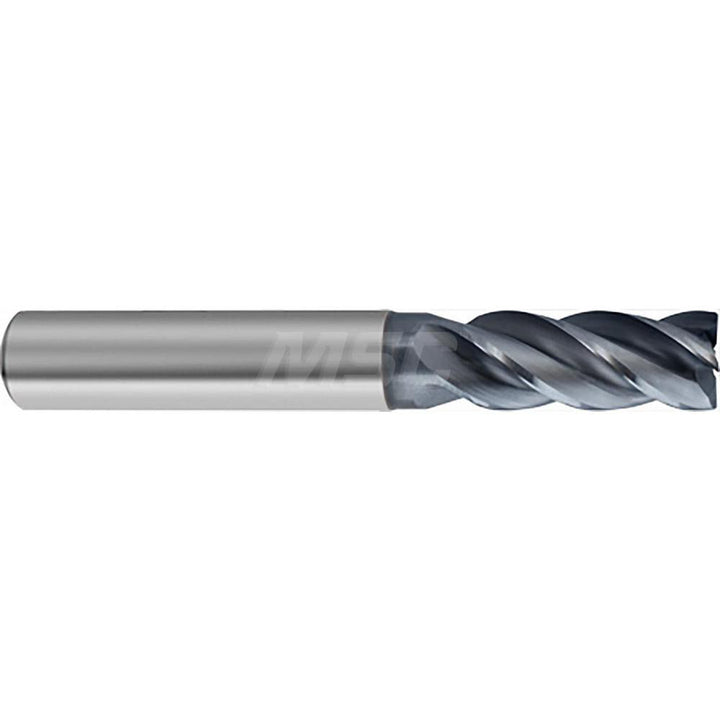

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064840095200

MFR# 9064840095200Series 6484

$77.80List $99.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Guhring 9064840095200 is a 3/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. 1 length of cut, 2-3/4 overall length. Series 6484.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut in1

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter in3/8

Neck diameter (mm)9.02

Number of flutes4

Overall length in2-3/4

Reach length1.2933

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
