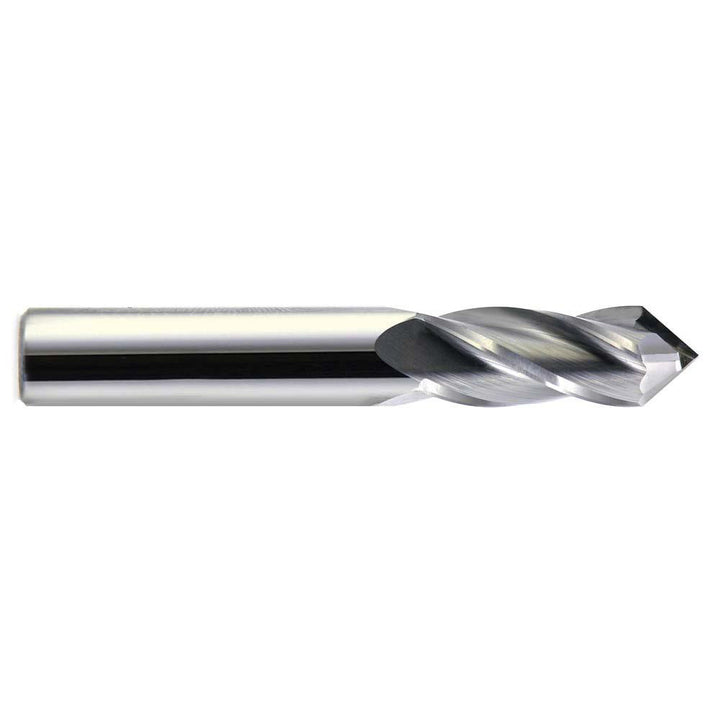

3/8" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 19781

Melin Tool

3/8" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 19781

MFR# 19781Series CCMG-__-DP82

$44.08List $56.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 19781 is a 3/8 4-flute Solid Carbide drill mills end mill. 1 length of cut, 2-1/2 overall length. Series CCMG-__-DP82.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Point angle82
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in3/8
Shank diameter tolerance+0.0000 - -0.0020 in
