1/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064850015900
MFR# 9064850015900Series 6485
$47.88List $61.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingAlCrN
Description

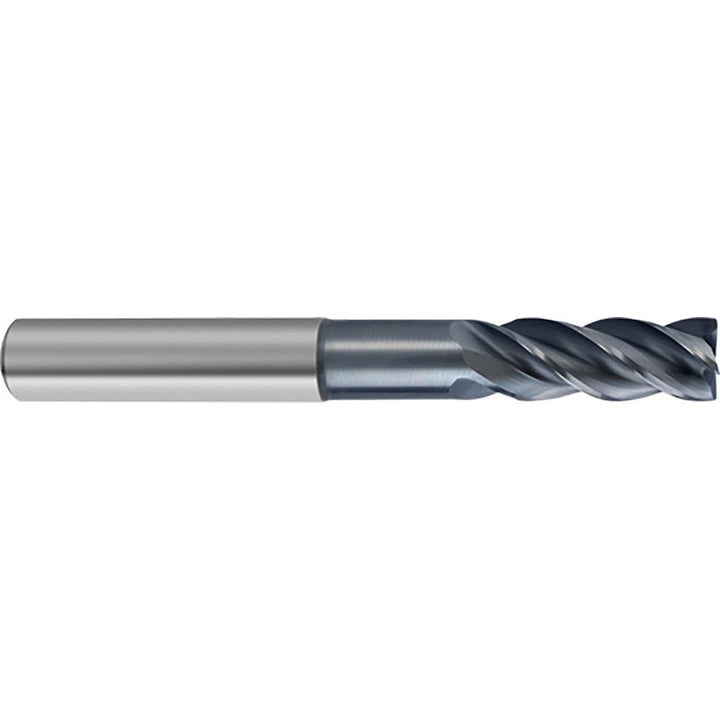

The Guhring 9064850015900 is a 1/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. 3/16 length of cut, 2 overall length. Series 6485.
Specifications
CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle38; 40
Length of cut in3/16
Length typeLong
Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy
Material gradeProprietary
Mill diameter in1/16
Neck diameter (mm)1.47
Number of flutes4
Overall length in2
Reach length0.3752
Shank diameter in3/16
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
