Guhring
2.80mm Solid Carbide Drill Bit, Perrox, 140° point - Guhring 9064880028000
MFR# 9064880028000Series 6488
$170.96List $219.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingPerrox
Description

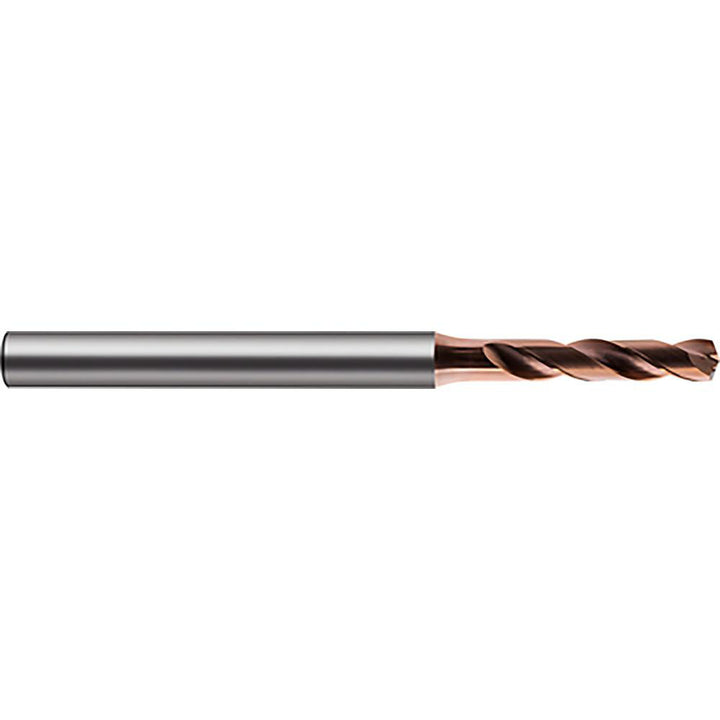

The Guhring 9064880028000 is a 2.80mm Solid Carbide drill bit with a Perrox finish, 140° point. Suited for stainless steel, superalloys & titanium. Series 6488.
Specifications
Coating finishPerrox
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size (mm)2.80
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)15.40
Flute typeSpiral
Maximum drilling depth (mm)11.20
Overall length (mm)50.00
Point typeFaceted
Primary workpiece materialStainless Steel; Superalloys & Titanium
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Tool applicationVery Small Hole Drilling
Tool materialSolid Carbide
Web thinningWeb-Thinned
