Guhring

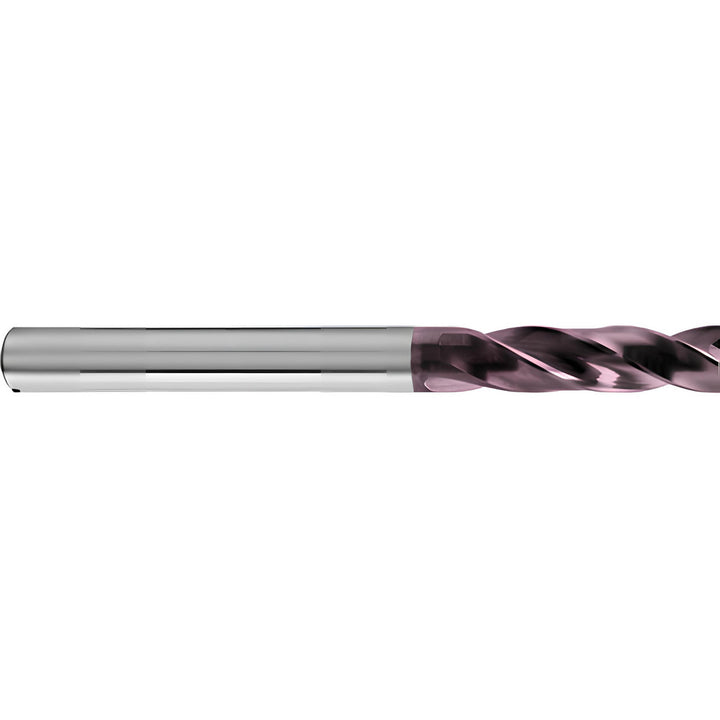

17/32" Solid Carbide Screw Machine Drill Bit, nano-FIREX, 180° point - Guhring 9065960134900
MFR# 9065960134900Series 6596
$349.75List $448.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
Coatingnano-FIREX
Description
The Guhring 9065960134900 is a 17/32" Solid Carbide Screw Machine drill bit with a nano-FIREX finish, 180° point. Suited for cast iron, stainless steel, steel. Series 6596.
Specifications
Coating finishnano-FIREX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceN7
Drill bit size in17/32
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio3xD
Flute length (mm)57.00
Flute typeSpiral
Maximum drilling depth (mm)36.77
Number of flutes2
Overall length (mm)104
Point typeFlat Bottom
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)14.00
Shank length (mm)45.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
