Guhring

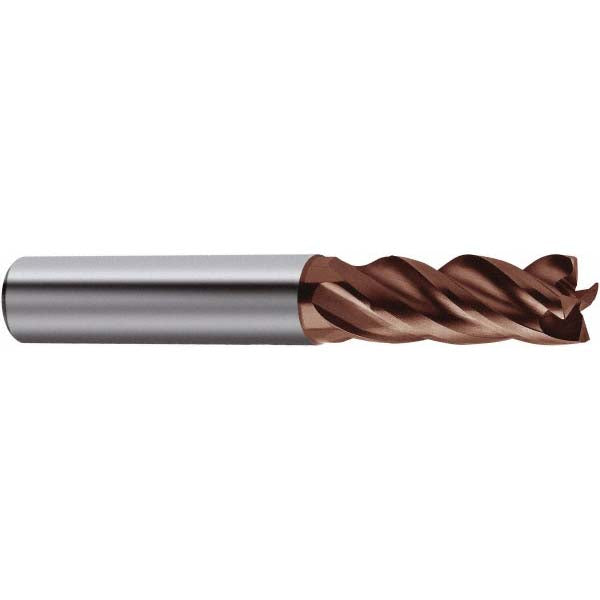

3/8" 4-Flute Solid Carbide Corner Radius End Mill, nano-Si - Guhring 9067590095240

MFR# 9067590095240Series 6759

$88.80List $113.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

Coatingnano-Si

Description

The Guhring 9067590095240 is a 3/8 4-flute Solid Carbide (Extra Fine Micrograin) corner radius end mill with a nano-Si finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/8 length of cut, 2-1/2 overall length. Series 6759.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishnano-Si

Coolant throughNo

Corner radius0.0310

Corner radius tolerance-0.002 to 0.002 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in7/8

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material

Material gradeExtra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
