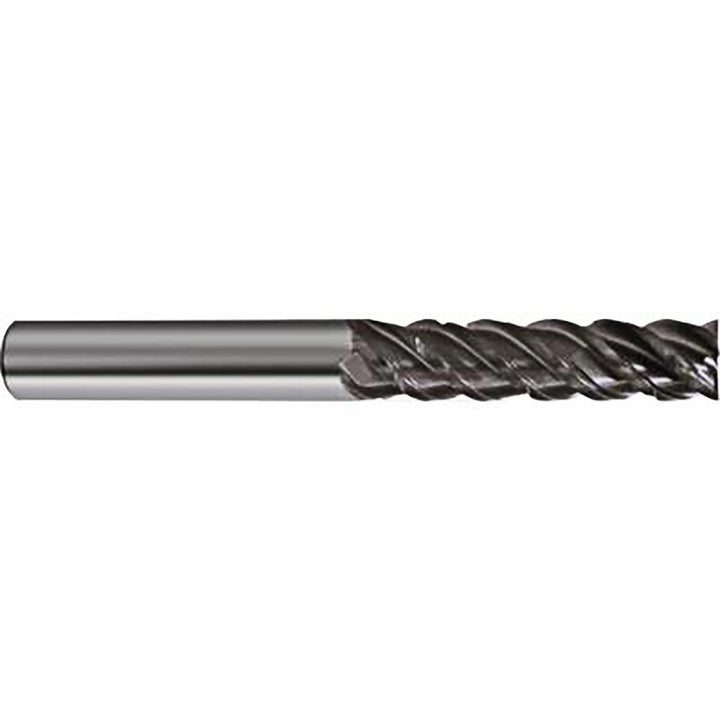

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Guhring 9067740127000

MFR# 9067740127000Series 6774

$200.87List $257.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Guhring 9067740127000 is a 1/2 4-flute Solid Carbide corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 2 length of cut, 4-1/2 overall length. Series 6774.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0060

Chamfer width0.0060

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle48

Helix styleHigh

Length of cut in2

Length typeExtra Long

Manufacturers catalog number9067740127000

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes4

Overall length in4-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in2

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
