Cleveland

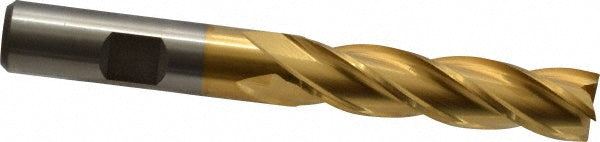

1/2" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33394
MFR# C33394Series HG-4C
$57.29List $73.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel
CoatingTiN
Description
The Cleveland C33394 is a 1/2 4-flute High Speed Steel square end mill with a Titanium Nitride finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 4 overall length. Series HG-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeRegular
Mill diameter in1/2
Number of flutes4
Overall length in4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
