Guhring

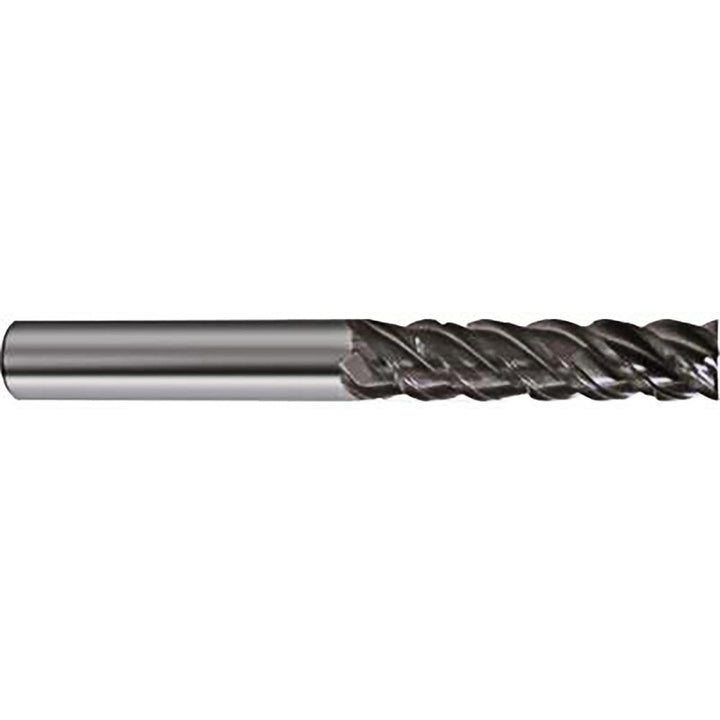

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Guhring 9067740158700

MFR# 9067740158700Series 6774

$311.67List $399.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Guhring 9067740158700 is a 5/8 4-flute Solid Carbide corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 2-1/4 length of cut, 5 overall length. Series 6774.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0070

Chamfer width0.0070

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle48

Helix styleHigh

Length of cut in2-1/4

Length typeExtra Long

Manufacturers catalog number9067740158700

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter toleranceh10

Number of flutes4

Overall length in5

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in2-1/4

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
