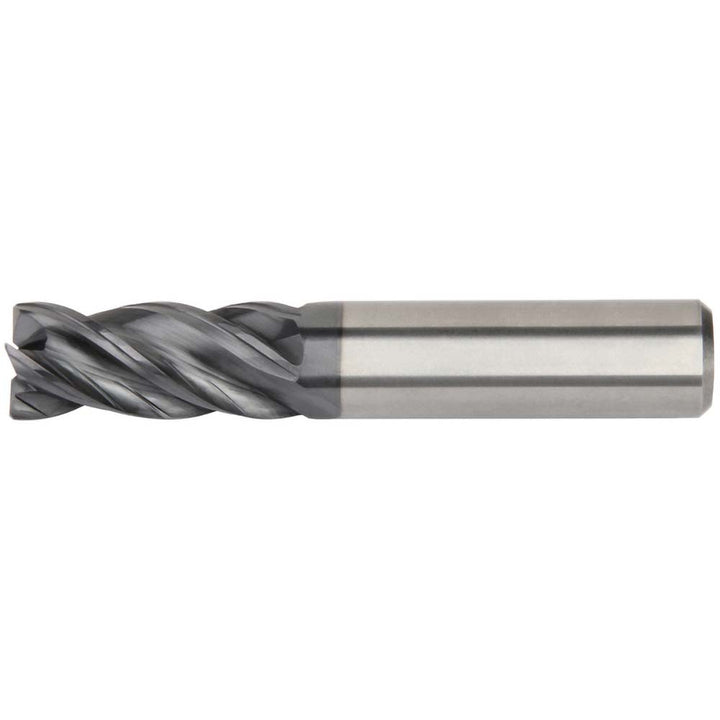

5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676945

Kennametal

5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676945

MFR# 6676945Series H1TE

$320.57List $411.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6676945 is a 5/8 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 2-1/4 length of cut, 5 overall length. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36-39
Length of cut in2-1/4
Length typeRegular
Material gradeKCPM15
Mill diameter in5/8
Neck length3.3465
Number of flutes4
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter in5/8
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
