Guhring

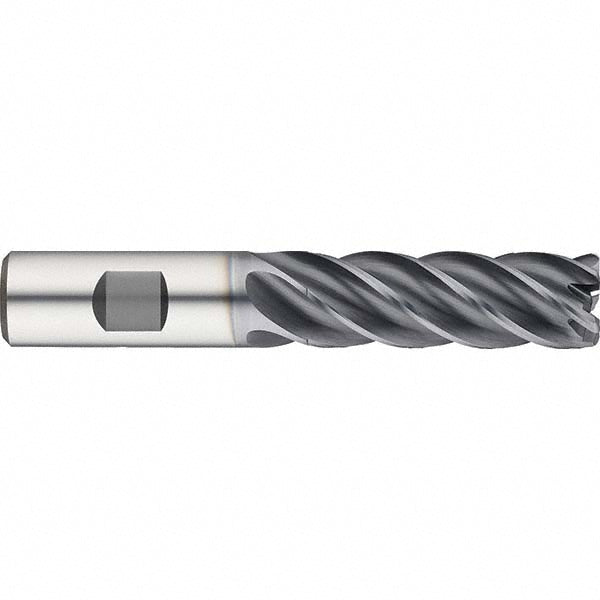

1/2" 5-Flute Solid Carbide Corner Radius End Mill, nano-A - Guhring 9069880127040

MFR# 9069880127040Series 6988

$207.39List $265.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9069880127040 is a 1/2 5-flute Solid Carbide corner radius end mill with a nano-A finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8 length of cut, 4 overall length. Series 6988.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.002 to 0.002 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleMedium High

Length of cut in1-5/8

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes5

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
