Guhring
7-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9069980190500
MFR# 9069980190500Series 6998
$506.94List $650.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
MaterialSolid Carbide
Coatingnano-A
Description

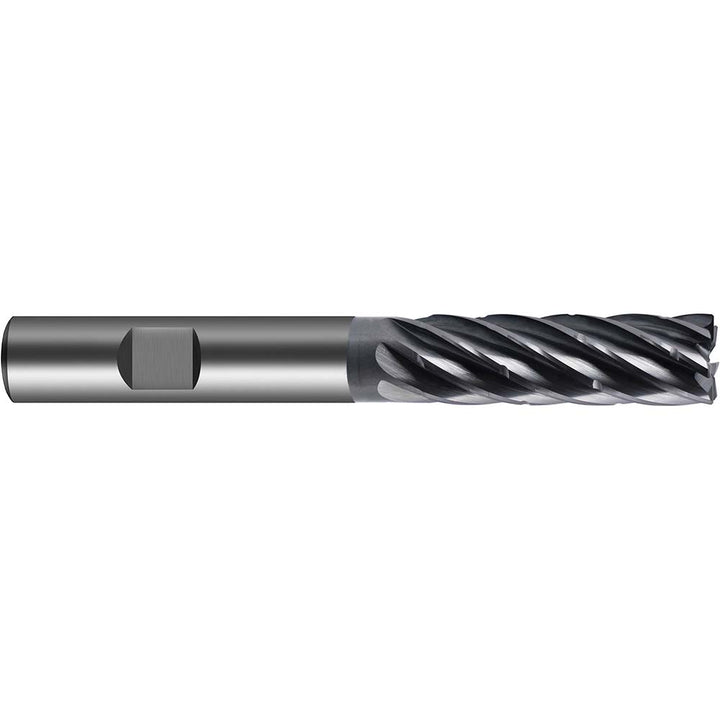

The Guhring 9069980190500 is a 7-flute Solid Carbide corner radius & corner chamfer end mill with a nano-A finish for longer tool life. 2-1/2 length of cut, 5 overall length. Series 6998.
Specifications
CentercuttingNo
Chamfer width0.0150
Coating finishnano-A
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute typeHelical
Length of cut in2-1/2
Manufacturers catalog number9069980190500
Model number6998
Number of flutes7
Overall length in5
Shank diameter in3/4
Shank typeFlatted
Variable helixNo
Variable indexYes
