Guhring

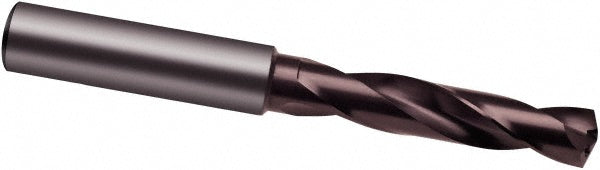

0.1299" Solid Carbide Drill Bit, Multi-layer, 140° point - Guhring 9085100033000
MFR# 9085100033000Series 8510
$140.84List $180.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9085100033000 is a 0.1299" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, nickel alloy, titanium alloy. Series 8510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1299
Drill bit size range0.1000 to 0.1500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeRegular Spiral
Material gradeK40
Number of flutes2
Overall length2.4409
Point typeFacet
Primary workpiece materialStainless Steel; Nickel Alloy; Titanium Alloy
Shank diameter0.2362
Shank typeStraight
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
