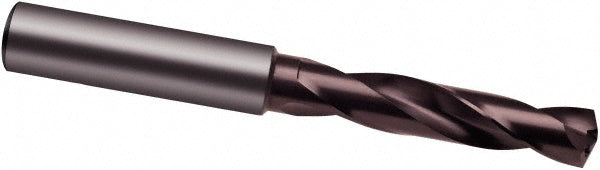

0.1831" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9085100046500
MFR# 9085100046500Series 8510
$153.51List $196.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9085100046500 is a 0.1831" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for titanium alloy. Series 8510.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1831
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth0.6700
Number of flutes2
Overall length (mm)66.00
Point typeVA
Primary workpiece materialTitanium Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
