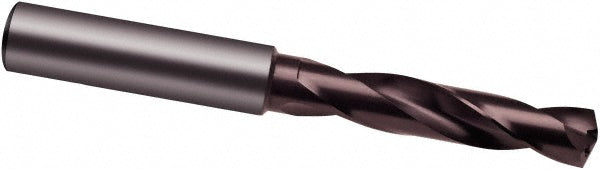

0.2087" Solid Carbide Screw Machine Drill Bit, nano-A, 140° point - Guhring 9085100053000

Guhring

0.2087" Solid Carbide Screw Machine Drill Bit, nano-A, 140° point - Guhring 9085100053000

MFR# 9085100053000Series 8510

$165.53List $212.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Coatingnano-A

Description

The Guhring 9085100053000 is a 0.2087" Solid Carbide Screw Machine drill bit with a nano-A finish, 140° point. Suited for titanium alloy. Series 8510.

Specifications

Coating finishnano-A
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.2087
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth0.7890
Number of flutes2
Overall length2.5984
Point typeVA
Primary workpiece materialTitanium Alloy
Shank diameter0.2362
Shank length1.4961
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
