Guhring
0.2441" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085100062000
MFR# 9085100062000Series 8510
$173.53List $222.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description

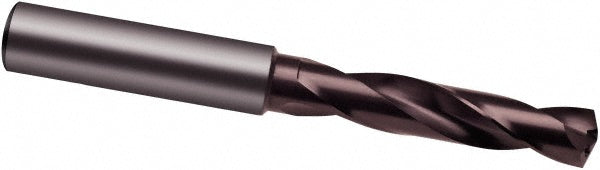

The Guhring 9085100062000 is a 0.2441" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy. Series 8510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.2441
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth0.9720
Number of flutes2
Overall length3.1102
Point typeFacet
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3150
Shank length1.7717
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
