Guhring

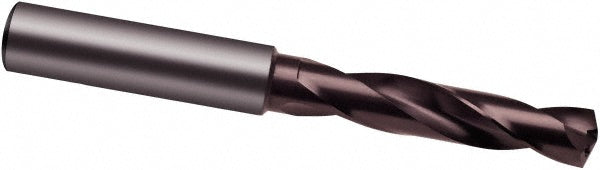

9/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085100071400
MFR# 9085100071400Series 8510
$193.43List $248.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
CoatingMulti-layer
Description
The Guhring 9085100071400 is a 9/32" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy. Series 8510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in9/32
Drill bit size letterK
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)41.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth1.1930
Number of flutes2
Overall length3.1102
Point typeFacet
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3150
Shank length1.4961
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
