Guhring

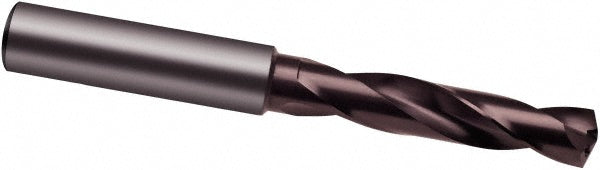

19/64" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085100075400
MFR# 9085100075400Series 8510
$139.27List $178.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingMulti-layer
Description
The Guhring 9085100075400 is a 19/64" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for stainless steel, high-temp alloy. Series 8510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)41.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth1.1690
Number of flutes2
Overall length3.1102
Point typeFacet
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3150
Shank length1.4961
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
