Guhring

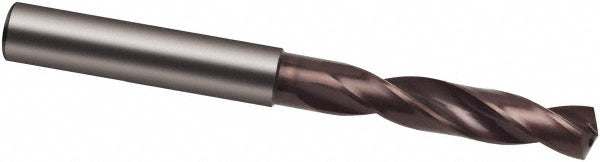

0.3543" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085200090000
MFR# 9085200090000Series 8520
$173.83List $222.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9085200090000 is a 0.3543" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, high-temp alloy. Series 8520.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3543
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Maximum drilling depth1.3190
Number of flutes2
Number of margins2
Overall length3.5039
Point typeCone Relief
Primary workpiece materialSteel; High-Temp Alloy
Shank diameter0.3937
Shank length1.6535
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
