Guhring

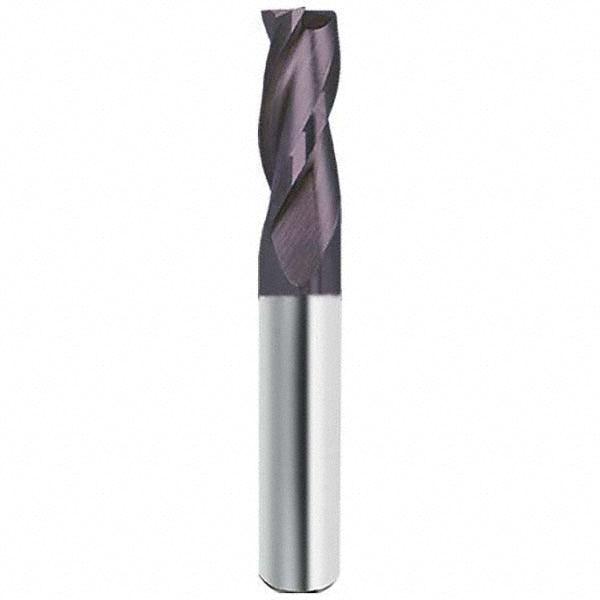

3/16" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199540047600
MFR# 9199540047600
$15.39List $19.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9199540047600 is a 3/16 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 5/8 length of cut, 2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in5/8
Length typeStandard
Material gradeProprietary
Mill diameter in3/16
Number of flutes3
Overall length in2
Shank diameter in3/16
Single or double endSingle
Variable helixNo
