Guhring

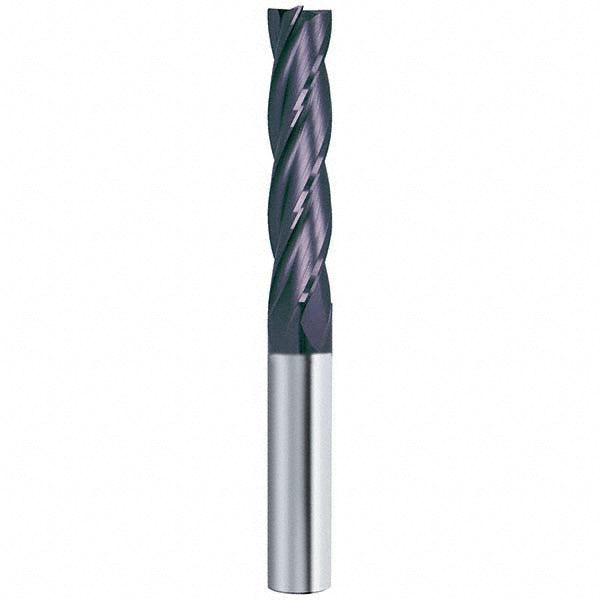

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199570127000

MFR# 9199570127000Series 19957

$106.82List $137.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199570127000 is a 1/2 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. 2 length of cut, 4 overall length. Series 19957.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in2

Length typeLong

Material gradeProprietary

Maximum helix angle30

Mill diameter in1/2

Mill diameter tolerancee8

Number of flutes4

Overall length in4

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo
