Guhring

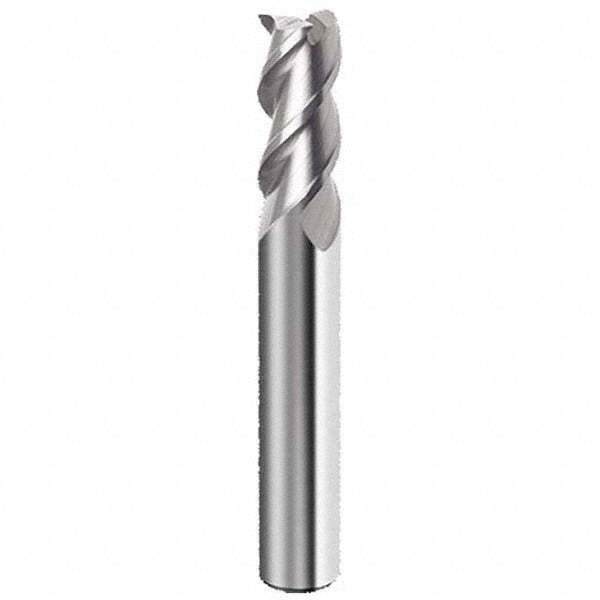

7/16" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199580111100

MFR# 9199580111100Series 19958

$38.73List $49.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199580111100 is a 7/16 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1 length of cut, 2-3/4 overall length. Series 19958.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in1

Length typeStandard

Material gradeProprietary

Maximum helix angle45

Mill diameter in7/16

Mill diameter tolerancee8

Number of flutes3

Overall length in2-3/4

Shank diameter in7/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
