Seco

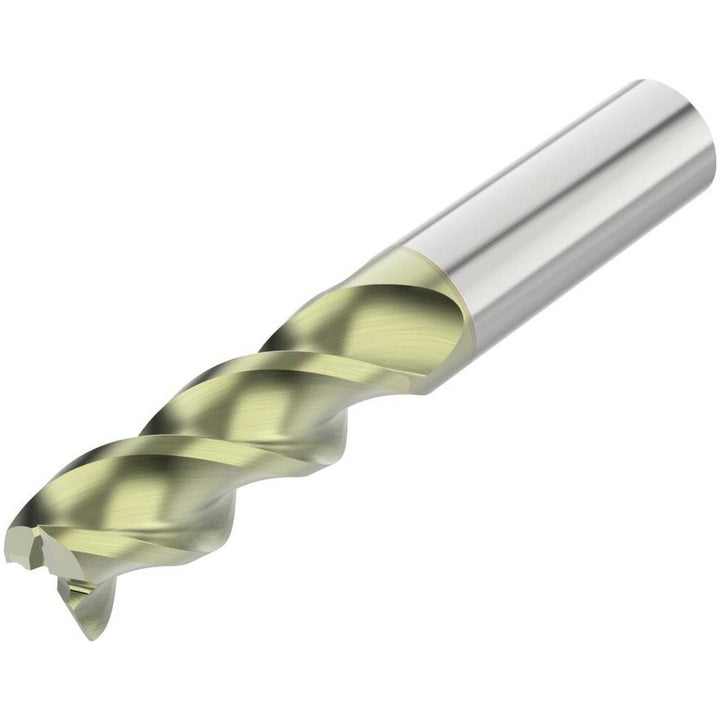

7/16" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023018

MFR# 10023018Series A345

$90.45List $116.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes3

MaterialSolid Carbide

CoatingANF

Description

The Seco 10023018 is a 7/16 3-flute Solid Carbide (Micrograin) square end mill with a ANF finish for longer tool life. Suited for aluminum & non-ferrous. 1 length of cut, 2-3/4 overall length. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coating finish familyANF

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1

Length typeShort

Material gradeMicrograin

Mill diameter in7/16

Mill diameter tolerance0.0020 in

Number of flutes3

Overall length in2-3/4

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in7/16

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0050

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
