Harvey Tool

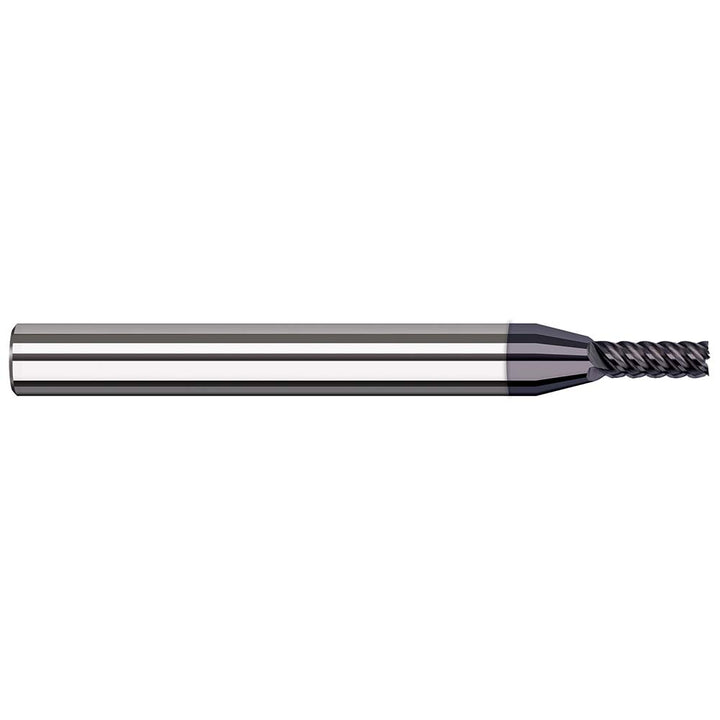

5/64" 5-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 24378-C6

MFR# 24378-C6Series Variable Helix End Mills for Medium Alloy Steels - Finishers - Square

$48.90List $57.09 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/64

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 24378-C6 is a 5/64 5-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 15/64 length of cut, 1-1/2 overall length. Series Variable Helix End Mills for Medium Alloy Steels - Finishers - Square.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle44

Length of cut in15/64

Length of cut range0.2000 - 0.3000

Mill diameter in5/64

Number of flutes5

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/8

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo
