Harvey Tool

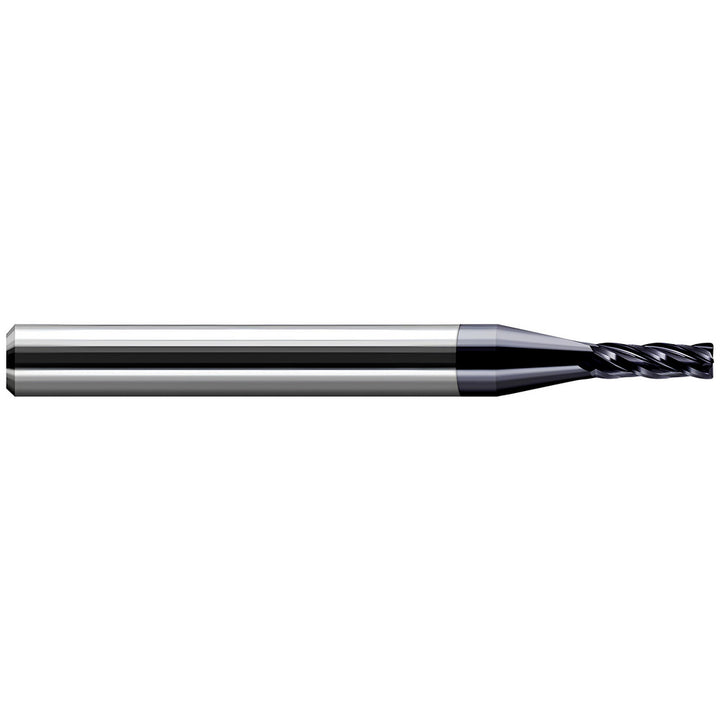

0.0930" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 28193-C3

MFR# 28193-C3Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills

$40.79List $47.63 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 28193-C3 is a 0.0930 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1-1/2 overall length. Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius in1/64

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix angle30

Length of cut0.1875

Length typeRegular

Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite

Material removal typeRoughing & Finishing

Mill diameter0.0930

Mill diameter tolerance0.0005 to -0.0005 in

Number of flutes4

Overall length in1-1/2

Overall length tolerance0.0100 to -0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
