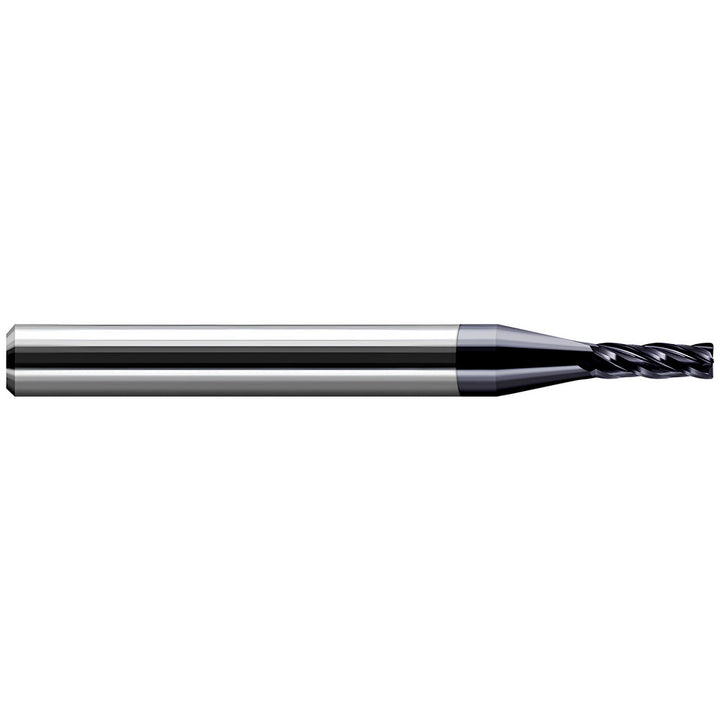

1/16" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - Harvey Tool 51662-C4

MFR# 51662-C4Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills

$40.02List $43.35 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes4

MaterialSolid Carbide

CoatingDiamond

Description

The Harvey Tool 51662-C4 is a 1/16 4-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1-1/2 overall length. Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDiamond

Coolant throughNo

Corner radius0.0200

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut0.1860

Length typeRegular

Material applicationAluminum; Cast Iron; Steel; Stainless Steel; Wood; Composite

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance0.0005/-0.0005 in

Number of flutes4

Overall length in1-1/2

Overall length tolerance0.0100/-0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
