Harvey Tool

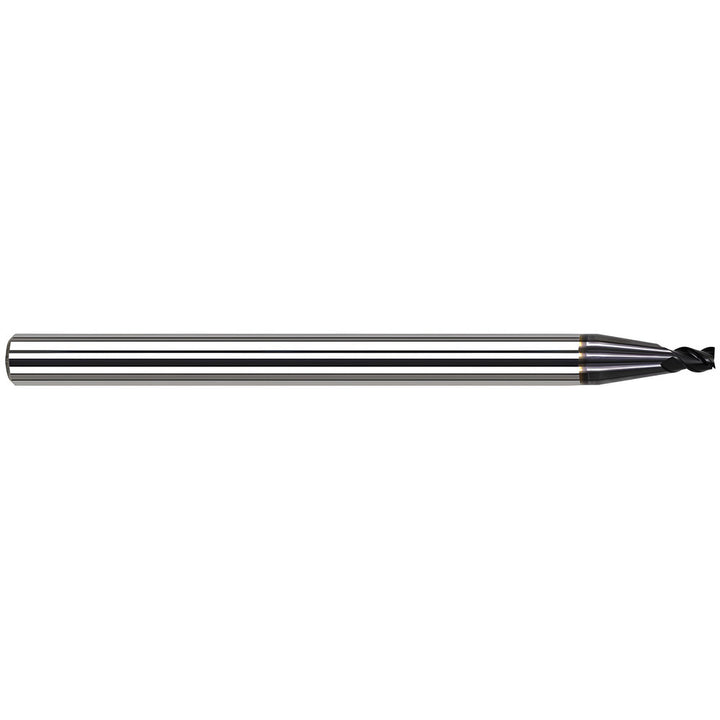

0.0470in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 53647-C6
MFR# 53647-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills
$61.14List $71.39
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Harvey Tool 53647-C6 is a 0.0470in 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1/4in length of cut, 2-1/2in overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in1/4in
Length typeLong
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter0.0470in
Mill diameter tolerance0.0005/-0.0005 in
Number of flutes3
Overall length in2-1/2in
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
