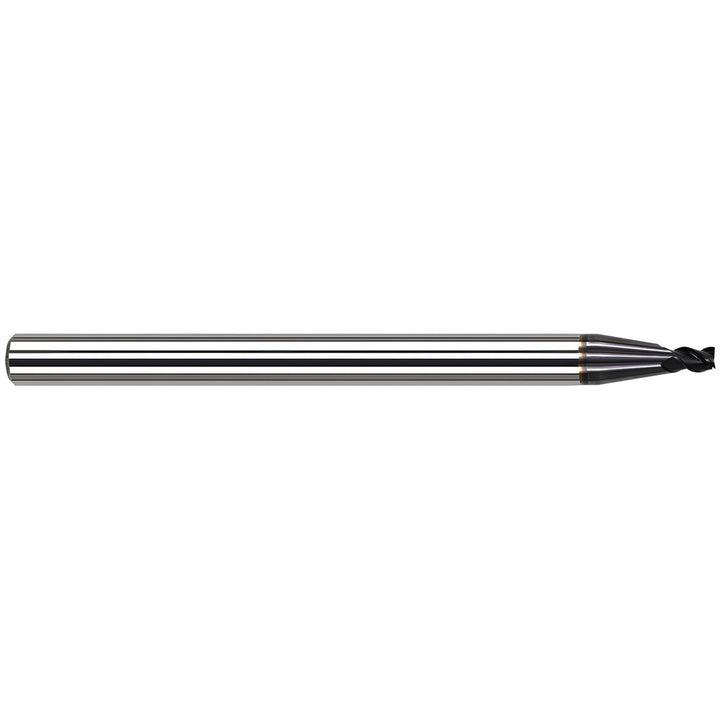

0.0620" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 53662-C6

MFR# 53662-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills

$58.60List $68.42 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 53662-C6 is a 0.0620 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/16 length of cut, 2-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleVariable

Length of cut in5/16

Length typeLong

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter0.0620

Mill diameter tolerance0.0005 to -0.0005 in

Number of flutes3

Overall length in2-1/2

Overall length tolerance0.0100 to -0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
