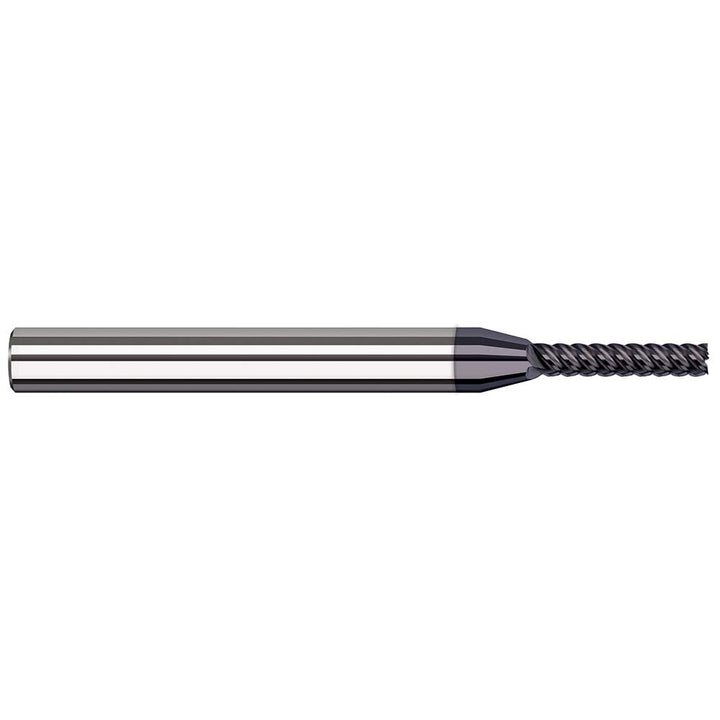

1/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 62615-C6

Harvey Tool

1/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 62615-C6

MFR# 62615-C6

$80.93List $94.49 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 62615-C6 is a 1/64 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 5/64 length of cut, 2-1/2 overall length.

Specifications

CentercuttingNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut in5/64
Length of cut range0.0000 - 0.1000
Mill diameter in1/64
Number of flutes4
Overall length in2-1/2
Shank diameter in1/8
Variable helixYes
