Harvey Tool

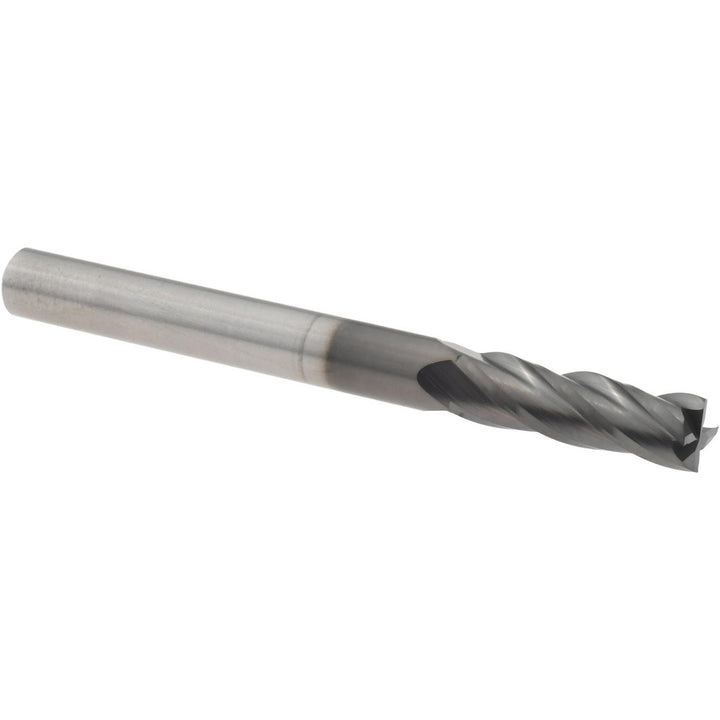

3/16" 4-Flute Solid Carbide Square End Mill, PVD Diamond - Harvey Tool 73187-C4

MFR# 73187-C4Series Miniature End Mills - Square - Stub & Standard

$42.31List $49.39 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingPVD Diamond

Description

The Harvey Tool 73187-C4 is a 3/16 4-flute Solid Carbide square end mill with a Amorphous Diamond finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, cfrp materials. 5/8 length of cut, 2 overall length. Series Miniature End Mills - Square - Stub & Standard.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPVD Diamond

Coating finish familyPVD Diamond

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Mill diameter in3/16

Number of flutes4

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; CFRP Materials

Shank diameter in3/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
