Harvey Tool

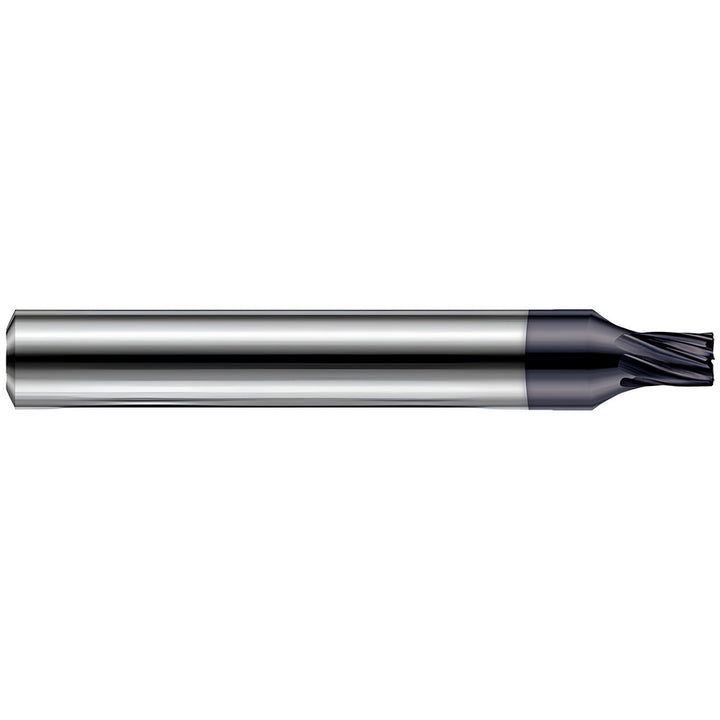

0.0620" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 850562-C6

MFR# 850562-C6Series End Mills for Hardened Steels - Corner Radius - For Steels 45-68 Rc; Material Specific End Mills

$78.07List $84.56 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes7

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 850562-C6 is a 0.0620 7-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 2-1/2 overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels 45-68 Rc; Material Specific End Mills.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleVariable

Length of cut0.0930

Length typeRegular

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter0.0620

Mill diameter tolerance0.0005 to -0.0005 in

Number of flutes7

Overall length in2-1/2

Overall length tolerance0.0100 to -0.0000 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
