Harvey Tool

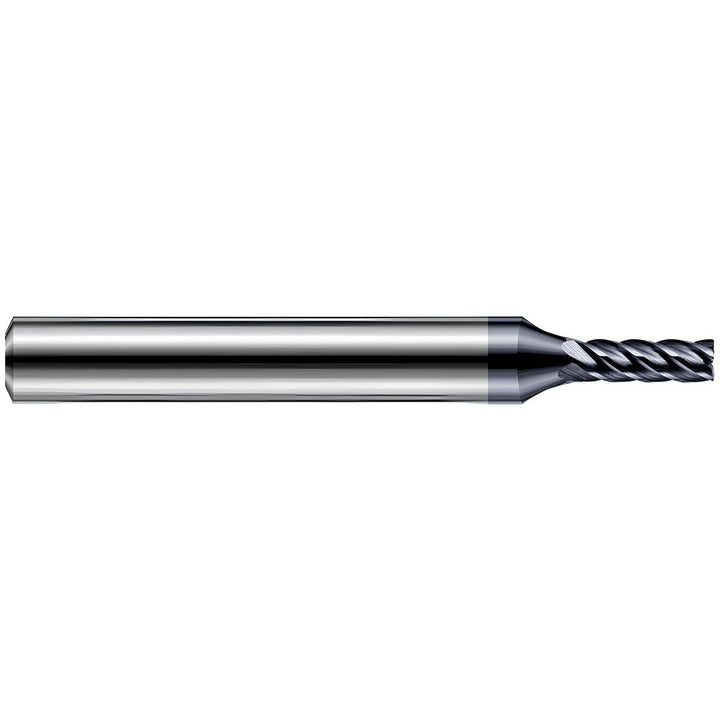

5/32in" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 851810-C6
MFR# 851810-C6Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills
$106.66List $124.52
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32in
Flutes5
MaterialSolid Carbide
CoatingAlTiN
Description
The Harvey Tool 851810-C6 is a 5/32in 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/4in length of cut, 3in overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in3/4in
Length typeLong
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter in5/32in
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes5
Overall length in3in
Overall length tolerance0.0100/-0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
