Harvey Tool

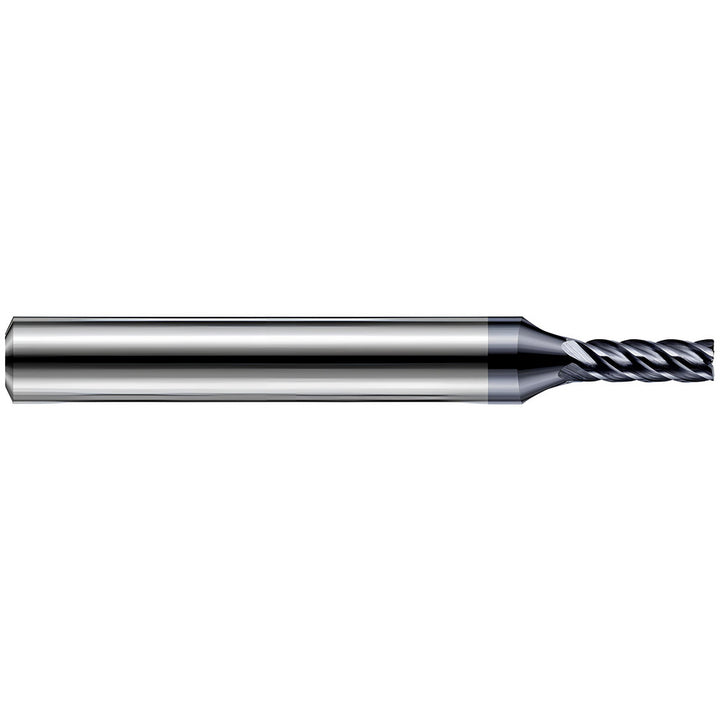

3/16" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 851812-C6

MFR# 851812-C6Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills

$112.50List $131.34 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 851812-C6 is a 3/16 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1 length of cut, 3 overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0050

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleVariable

Length of cut in1

Length typeLong

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance0.0000 to -0.0020 in

Number of flutes5

Overall length in3

Overall length tolerance0.0100 to -0.0000 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
