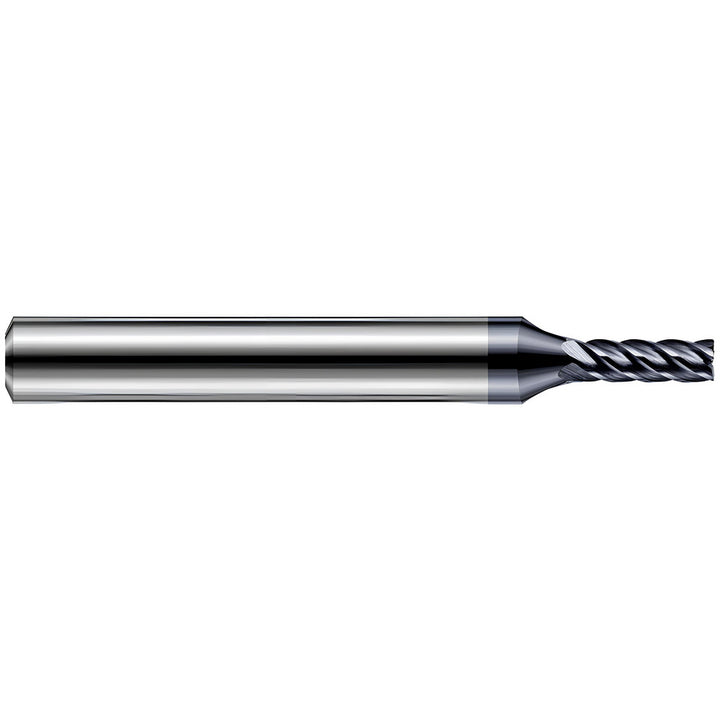

1/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 852208-C6

Harvey Tool

1/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 852208-C6

MFR# 852208-C6Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills

$98.08List $114.51 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 852208-C6 is a 1/8 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/8 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut in3/8
Length typeRegular
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes5
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
