Harvey Tool

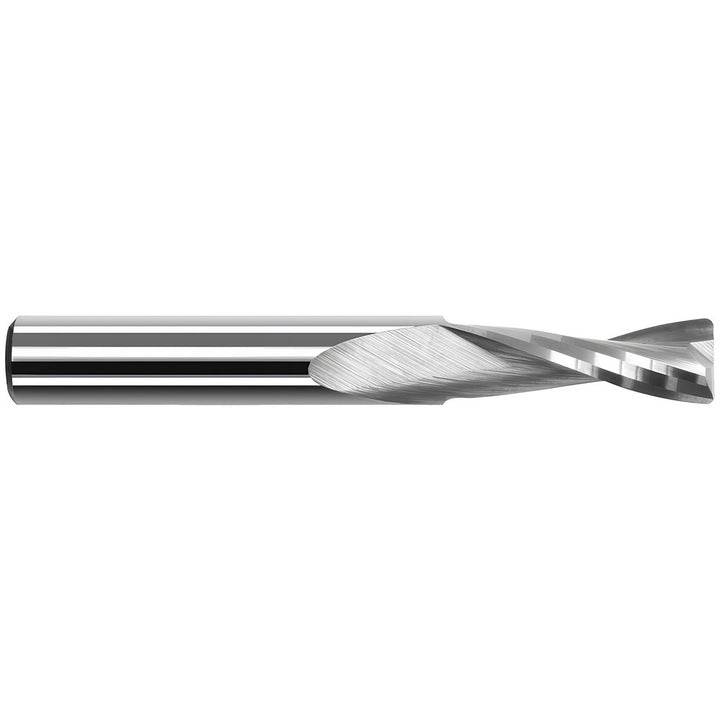

1/16" 2-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 862462

MFR# 862462Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills

$60.49List $70.62 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The Harvey Tool 862462 is a 1/16 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal, non-iso. 5/16 length of cut, 2 overall length. Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0150

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleLow

Length of cut in5/16

Length typeLong

Material applicationAluminum; Wood; Composite

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance0.0000 to -0.0020 in

Number of flutes2

Overall length in2

Overall length tolerance0.0100 to -0.0000 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal; Non-ISO

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
