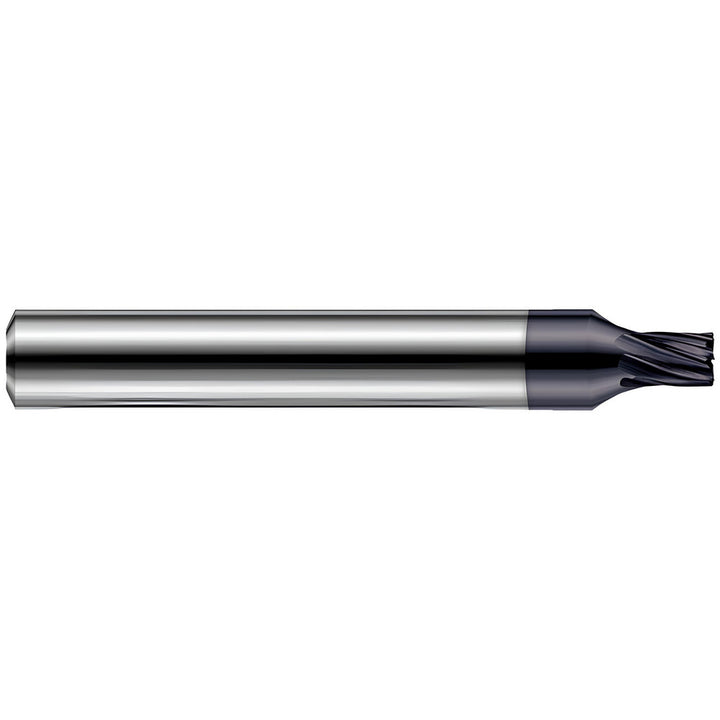

3/16in" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 882312-C6

Harvey Tool

3/16in" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 882312-C6

MFR# 882312-C6Series End Mills for Hardened Steels - Corner Radius - For Steels 45-68 Rc; Material Specific End Mills

$113.25List $132.22 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 882312-C6 is a 3/16in 7-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 9/16in length of cut, 2-1/2in overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels 45-68 Rc; Material Specific End Mills.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in9/16in
Length typeRegular
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes7
Overall length in2-1/2in
Overall length tolerance0.0100/-0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
