Harvey Tool

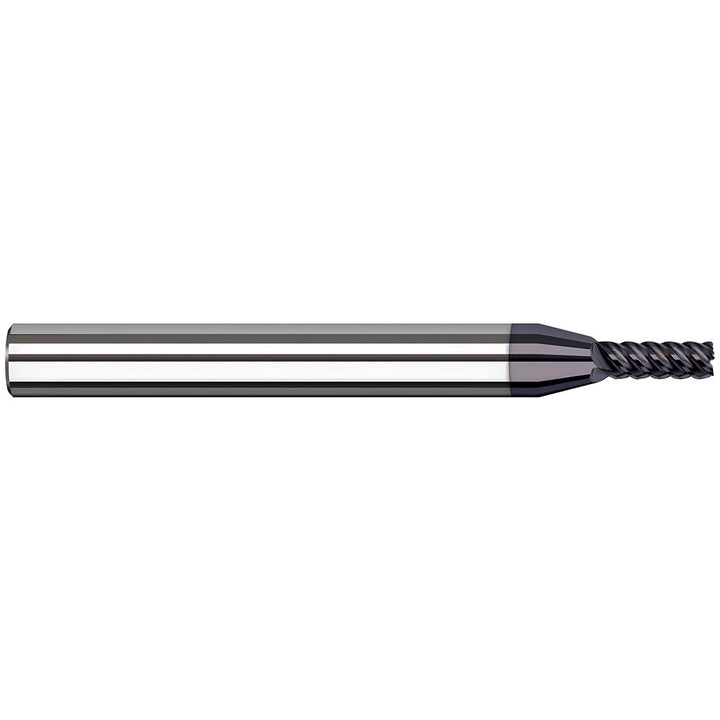

1/4" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 885516-C6

MFR# 885516-C6Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills

$76.41List $89.21 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes7

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 885516-C6 is a 1/4 7-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/4 length of cut, 4 overall length. Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHigh Precision Toolholder

Helix styleVariable

Length of cut in1-1/4

Length typeLong

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance0.0000 to -0.0020 in

Number of flutes7

Overall length in4

Overall length tolerance0.0100 to -0.0000 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
