1/8" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 940108-C3

Harvey Tool

1/8" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 940108-C3

MFR# 940108-C3

$94.59List $110.44 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

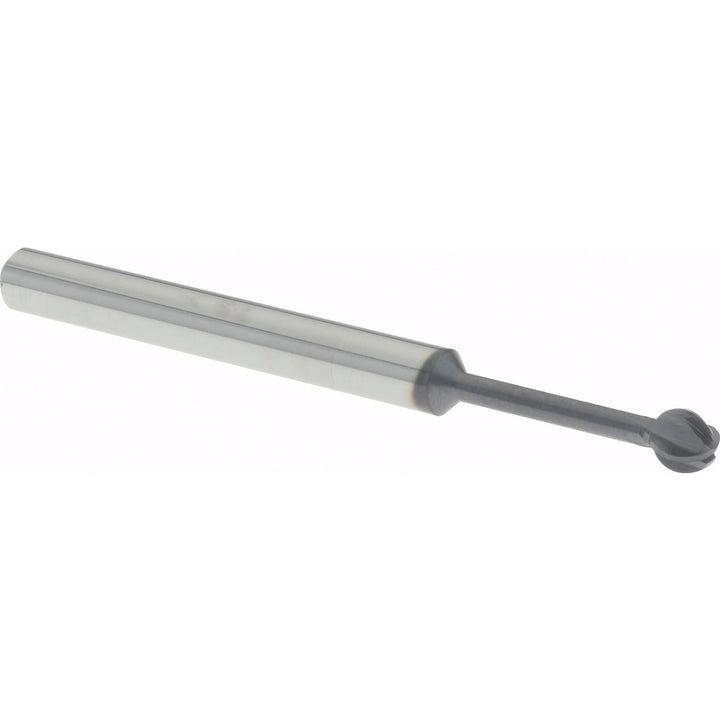

The Harvey Tool 940108-C3 is a 1/8 4-flute Solid Carbide undercutting end mill with a AlTiN finish for longer tool life. 1-1/2 overall length.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.1160
Mill diameter in1/8
Neck diameter0.0530
Neck length0.3750
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees300
