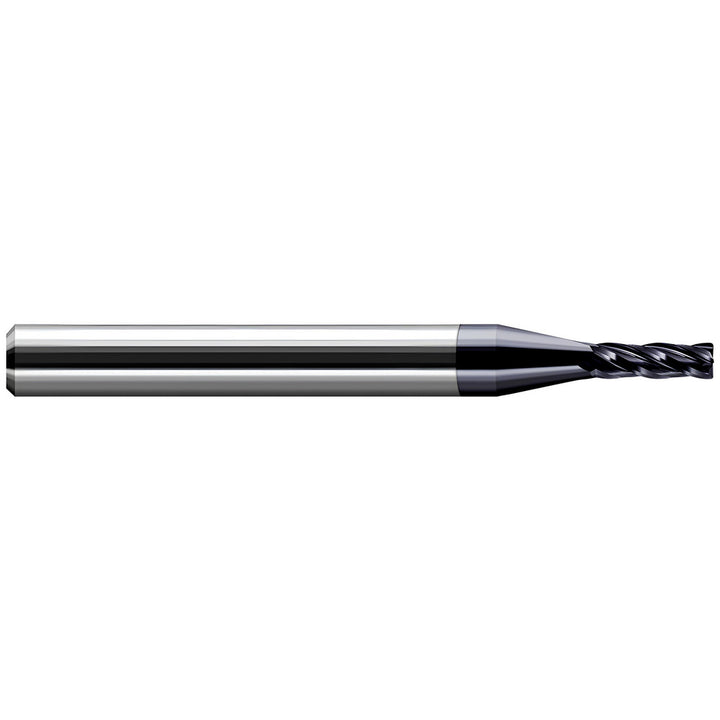

1/4" 4-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 941115

Harvey Tool

1/4" 4-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 941115

MFR# 941115Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills

$42.02List $49.06 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The Harvey Tool 941115 is a 1/4 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 3/8 length of cut, 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Length of cut in3/8
Length typeShort
Material applicationAluminum; Cast Iron; Steel; Stainless Steel; Wood; Composite
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
